Brand : BIOSTAR
Model : H610MHP
CPU Support : Support for 12th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
* Please refer to www.biostar.com.tw for CPU support list.
Socket : 1700
Chipset : H610
Memory Support : Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Support Intel Extreme Memory Profile (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list.
Graphics : Supports DX12
Supports HDCP
CPU Brand : Intel
Maximum Memory Bus : 3200
Maximum PCIe Version : PCIe 4.0
M.2 Storage Type Support : NVMe, SATA
M.2 Slot : 1
Package Contents : 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
Multi Graphic Support : N/A
Audio : ALC897
7.1 Channels, High Definition Audio
Expansion Slots : 1x PCIe 3.0 x1 Slot
1x PCIe 4.0 x16 Slot
Storage : Total supports 1x M.2 socket and 4 x SATA III (6Gb/s) ports
4 x SATA III Connector (6Gb/s)
1 x M.2 (M Key) Socket (M2_PCIEG3_32G_ SATA):
Supports M.2 Type 2240 /2260 /2280 SSD module
Supports PCI-E 3.0 x4 (32Gb/s) & SATA SSD
USB : 4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)
Internal I/O Connectors : 4 x SATA III Connectors (6Gb/s)
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header

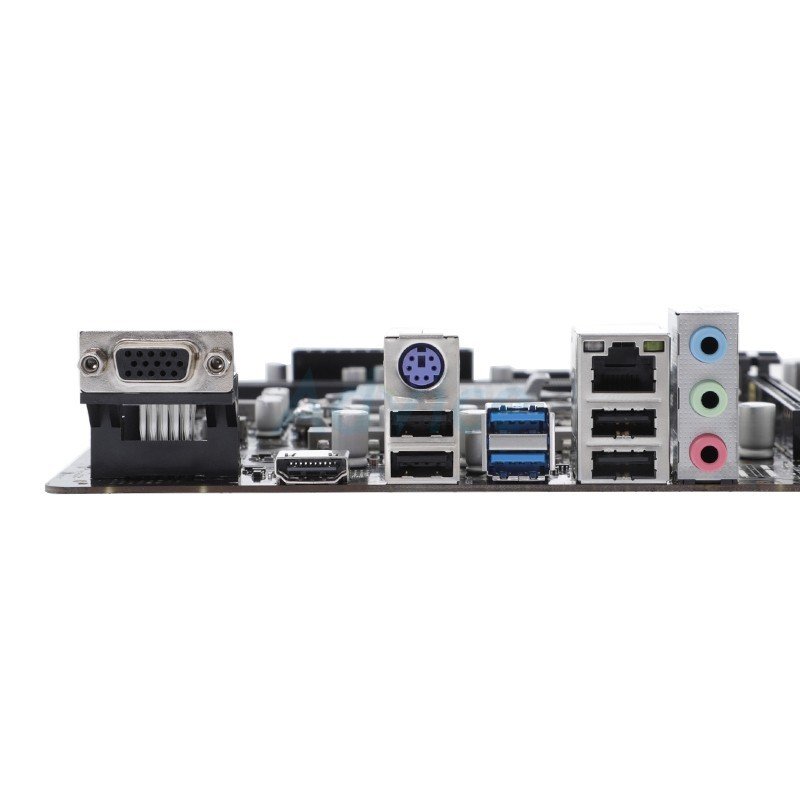

Back Panel Connectors : 1 x PS/2 Keyboard/Mouse Port
1 x HDMI
1 x VGA Port
2 x USB 3.2 (Gen1) ports
4 x USB 2.0 ports
1 x LAN port
3 x Audio Jack
LAN : Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Wireless Data Network : None
Form Factor : Micro ATX Form Factor Dimension: 20.8cm x 23.6cm ( W x L )
H/W Monitoring : CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
BIOS : N/A
Special Features : N/A
Software Features : BullGuard
Operating System Support : Supports Windows 10 (64bit) / 11(64bit)
?Biostar reserves the right to add or remove support for any OS with or without notice.
Dimension (W x D x H) : 20.80 x 23.60 x 0.00 cm
Net Weight : 0.00
ประกัน : 3 ปี
